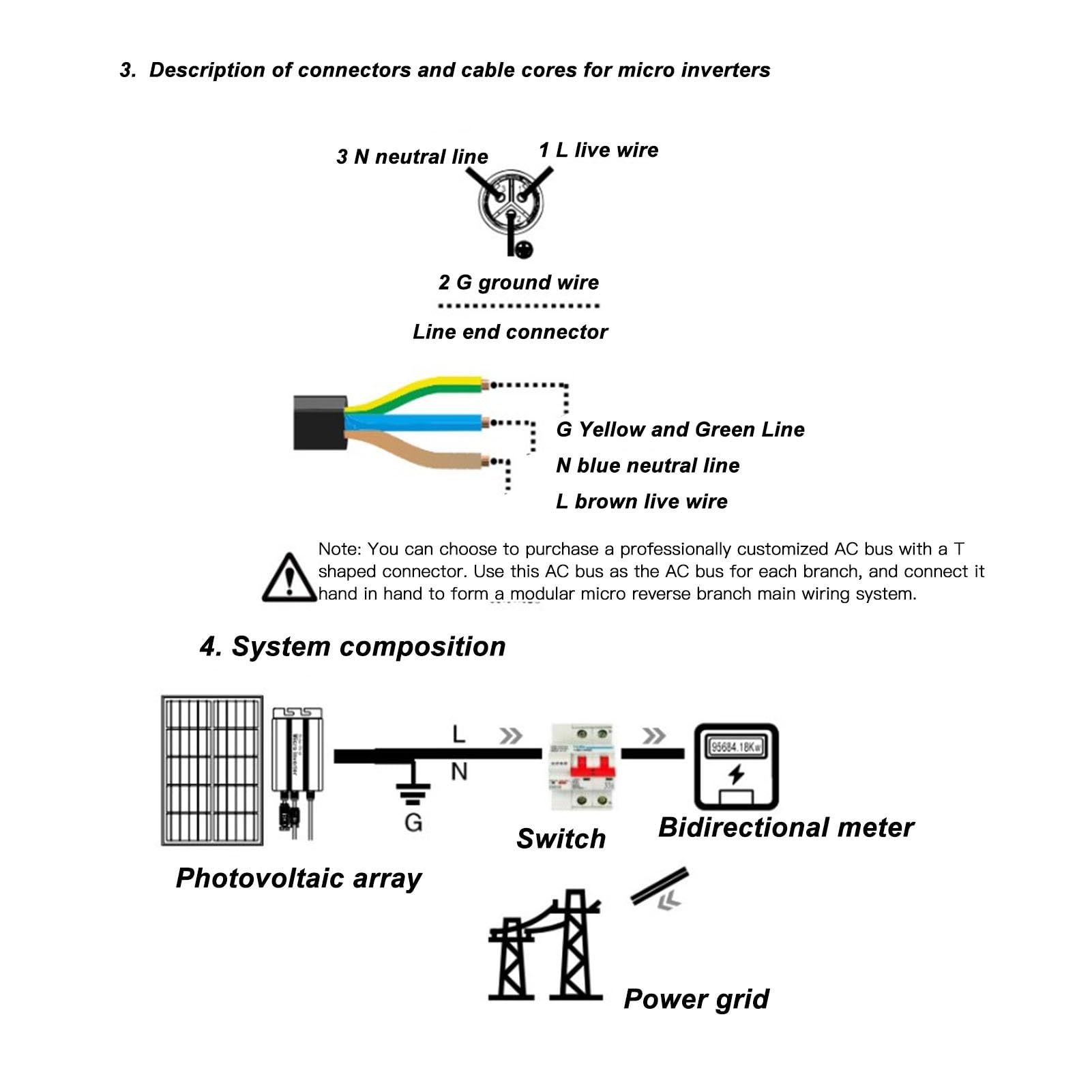

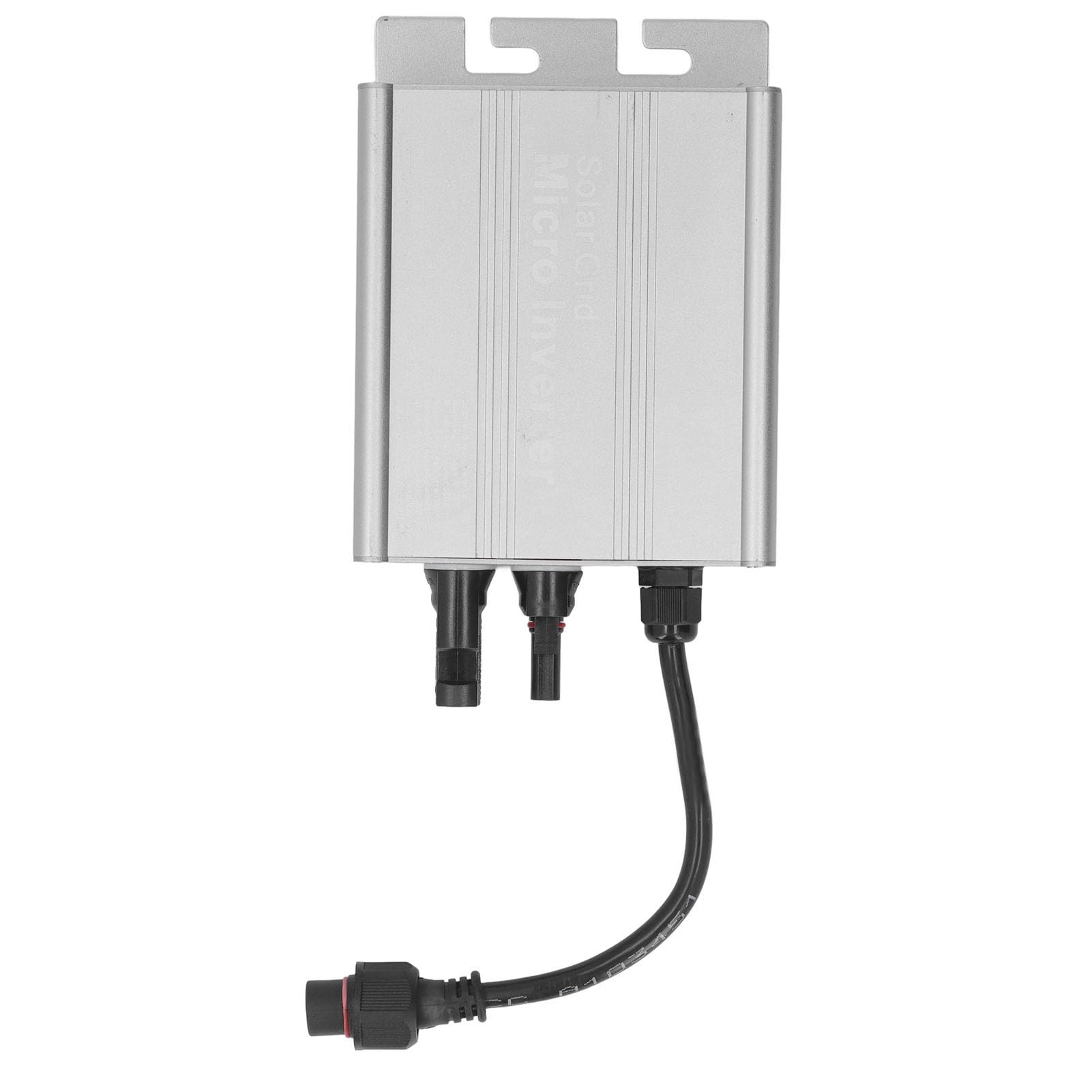

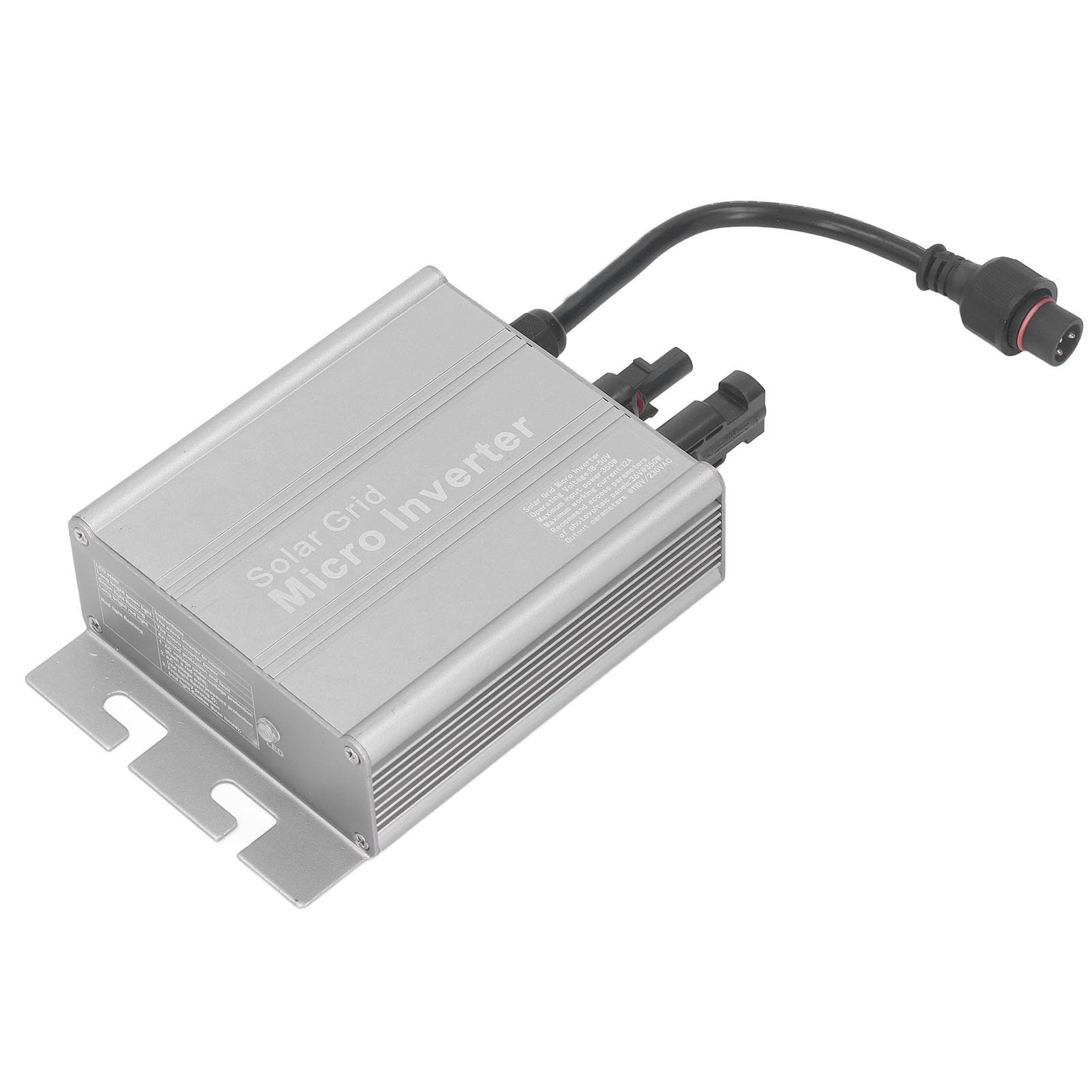

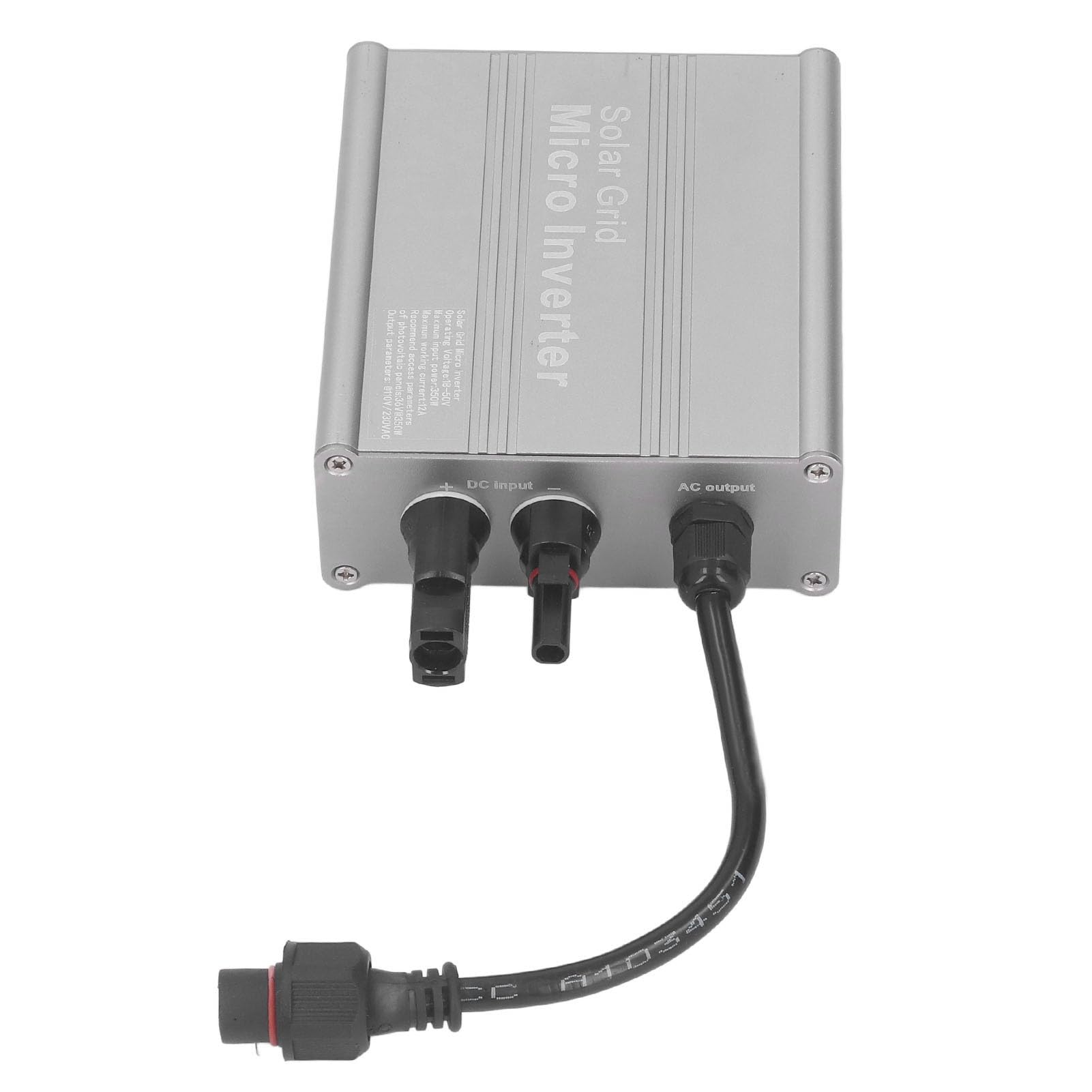

Specification:Item Type: Solar Grid Tie InverterMaterial: Aluminum AlloyOutput Frequency Range: At 50Hz: 47-53Hz, at 60Hz: 57-63HzOutput Power Factor: >95%Number of Connection Per Circuit String: 6 units (single phase at 120VAC), 12 units (single phase at 230VAC)Output Efficiency:MPPT Tracking Power: 0.99Maximum Output Efficiency: 93%Total Harmonic Distortion Rate: THDNight Loss: Appearance and Technical Features:Working Temperature Range: -20℃ to 65℃Storage Temperature Range: -40 ℃ to 75℃Waterproof Grade: IP65Heat Dissipation : Self coolingPower Mode: Reverse , load priority useElectromagnetic Compatibility: EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1Power Grid Disturbance: EN61000-3-2 safety regulations EN62109.ULSTD.1741Power Grid Inspection: DIN VDE 0126IEEE STD.1547.1547.1 and 1547.AHow to Use:Step 1: Connect the inverter to the rack. the position of the inverter on the rack relative to the junction box of the photovoltaic module or any other obstacles. Install a inverter at each location using recommended hardware.Step 2: Connect the AC cable of the inverter and connect it by with the AC bus cables (L brown, N blue, G green and yellow). Please do not exceed the maximum current of the AC bus cable.Step 3: Connect the inverter to the photovoltaic module, please do not exceed the maximum input voltage of the VOC inverter on the photovoltaic panel.Step 4: Install the AC branch circuit junction box and connect the conductors of the AC bus cable. Connect the AC branch circuit junction box to the public grid interconnection point.Step 5: Carefully check all inverters, connectors, and cables for correctness and good connection.Step 6: Open the AC circuit breaker on each AC branch circuit of the inverter.Step 7: Turn on the main AC circuit breaker of the public power grid. Your system will start
