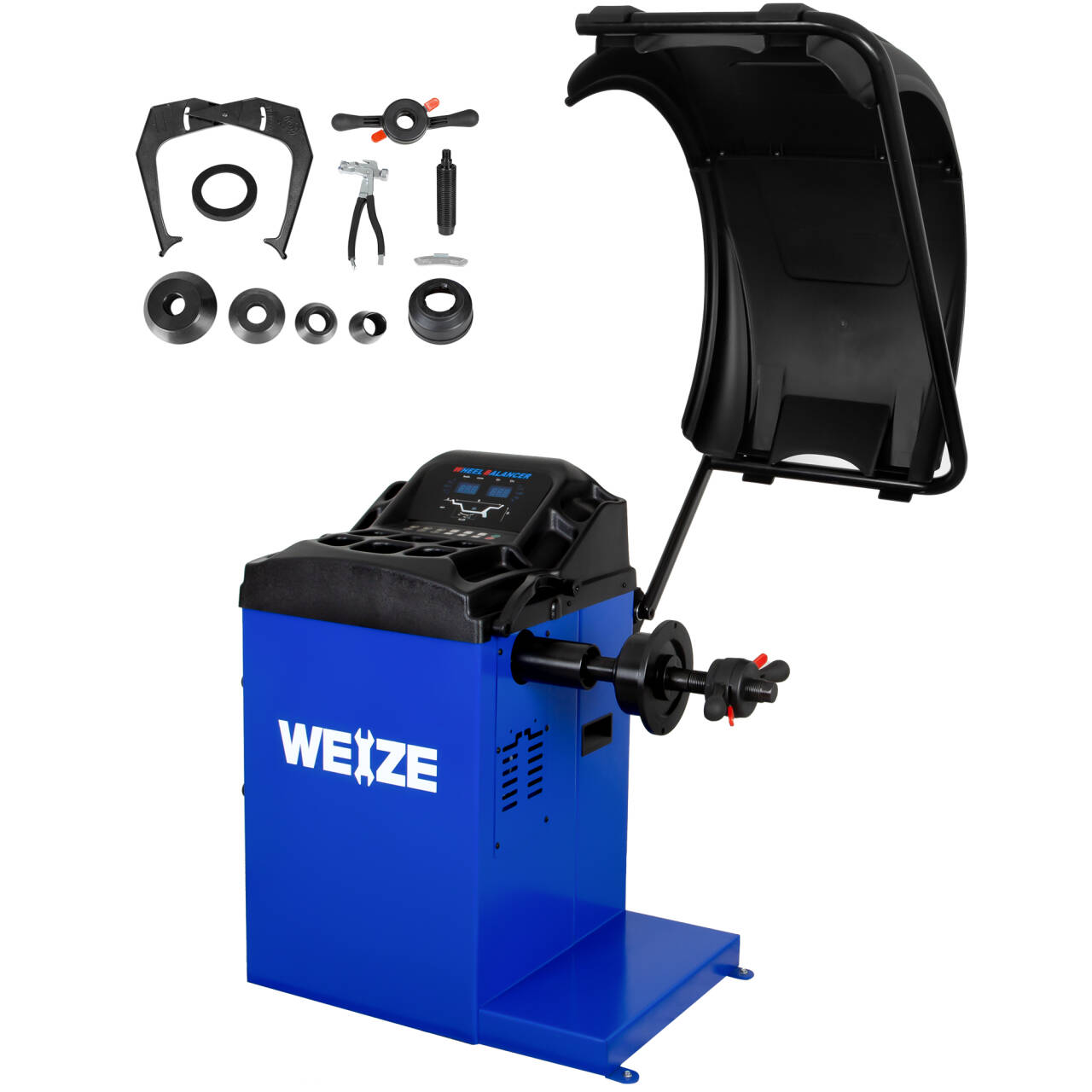

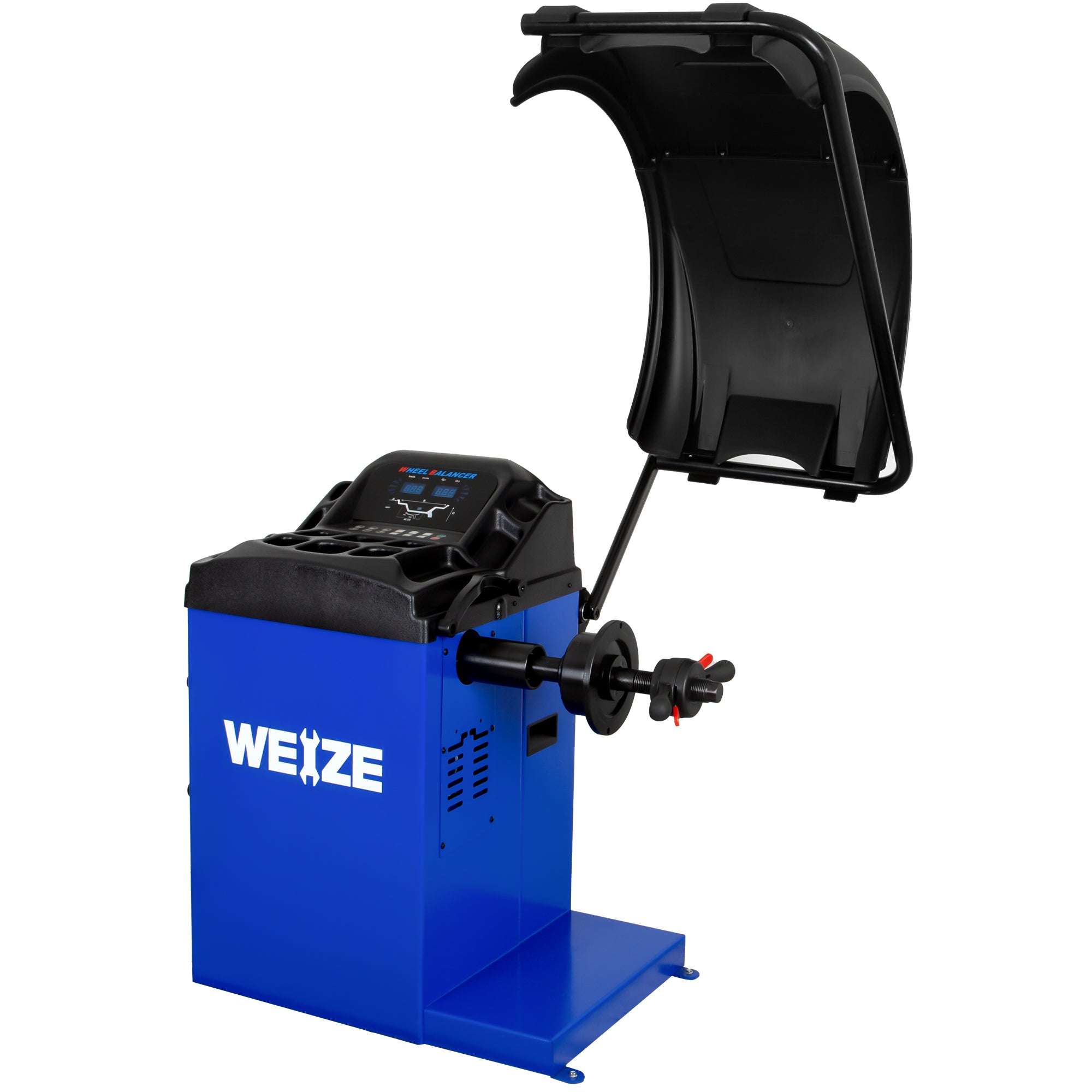

New Heavy Duty Wheel Balancer Tire Balancers Machine with Protective Cover

The wheel balancer plays a crucial role in ensuring that the tire maintains its center of gravity while rotating. This is achieved through dynamic balancing, which can improve driving safety, increase tire lifespan, reduce fuel consumption, and enhance overall driving stability. Additionally, it helps reduce damage to chassis suspension parts and improves driving comfort.

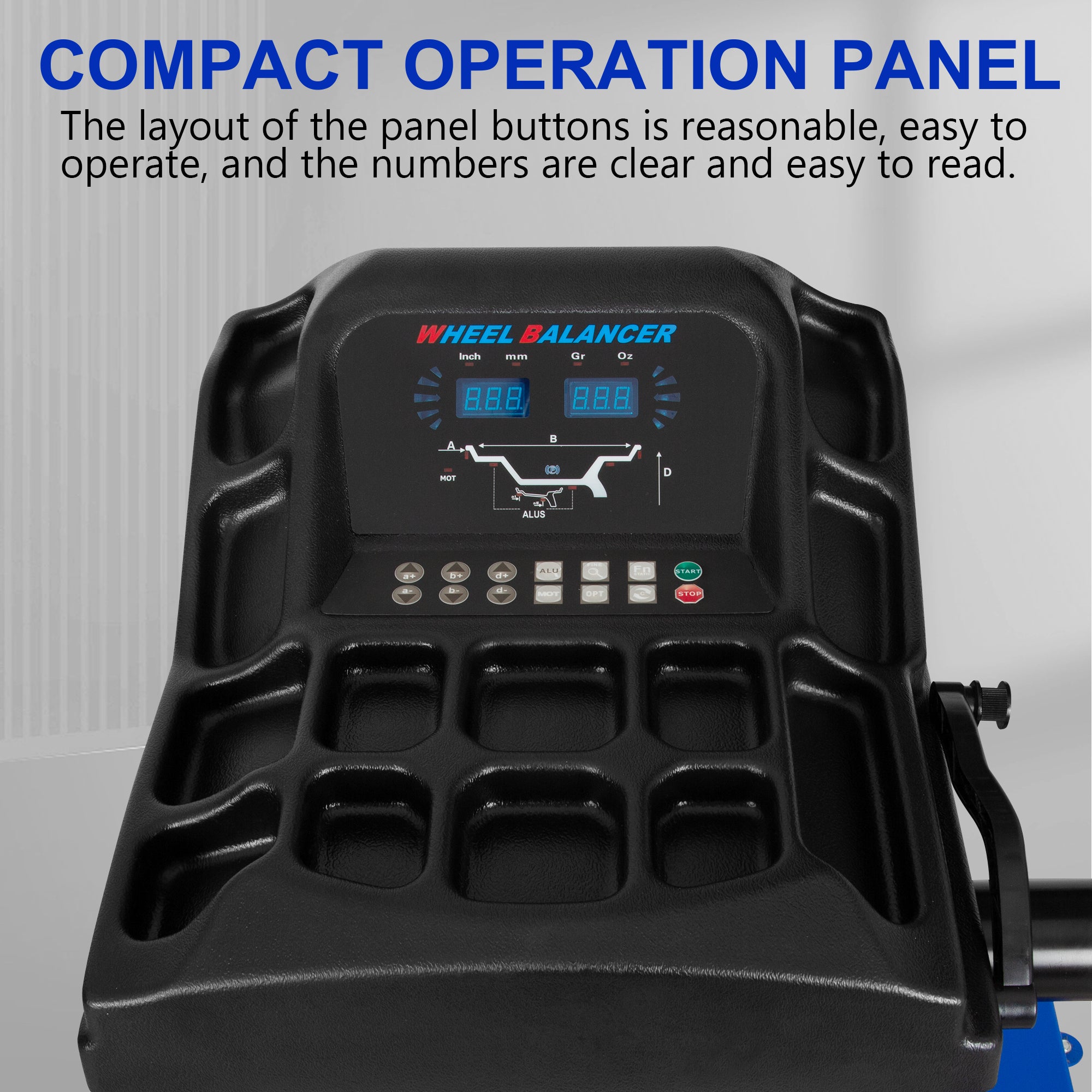

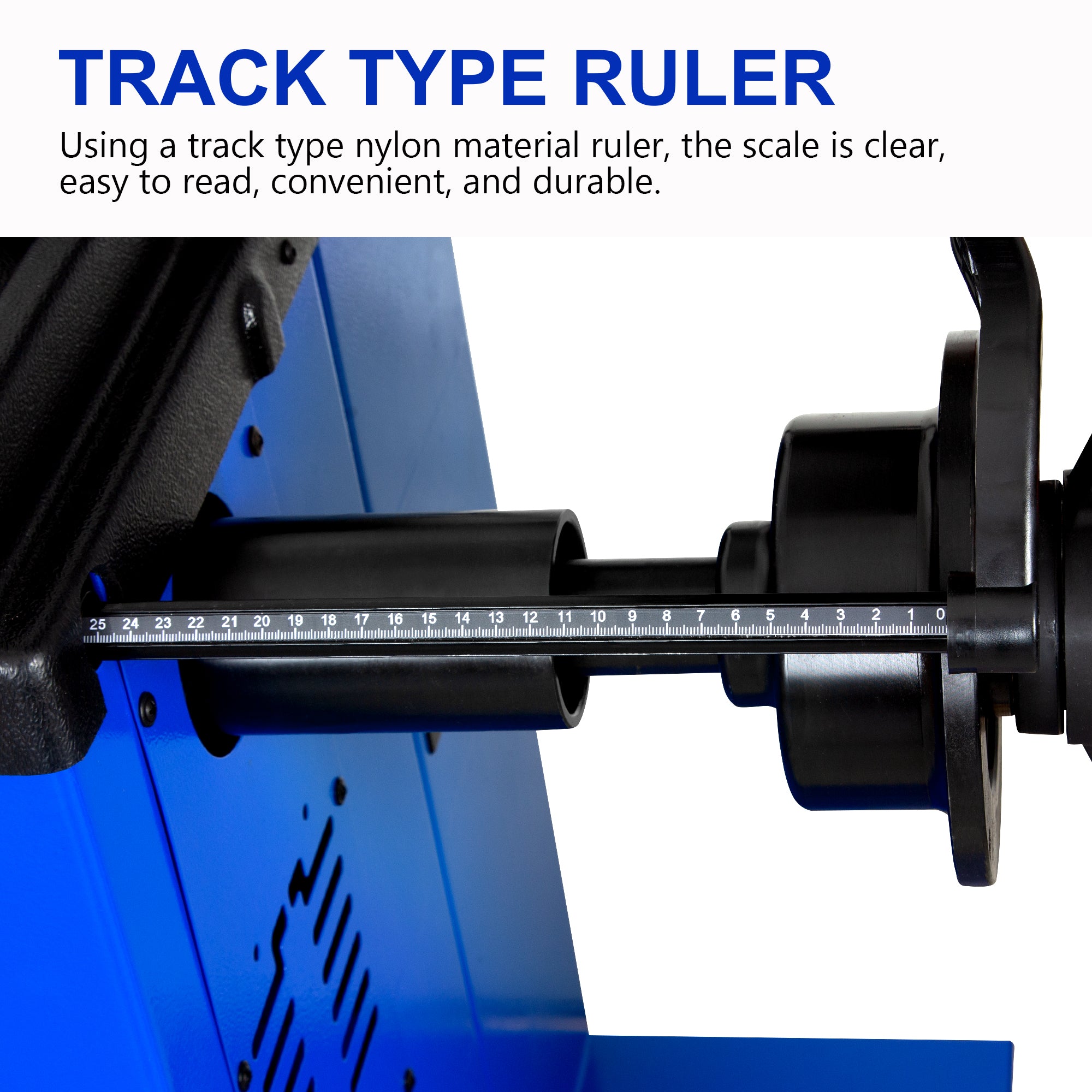

Compact Operation Panel: The panel buttons are laid out logically for easy operation, with clear and readable numbers. The use of a track-type nylon material ruler ensures durability and convenience in reading the scale.

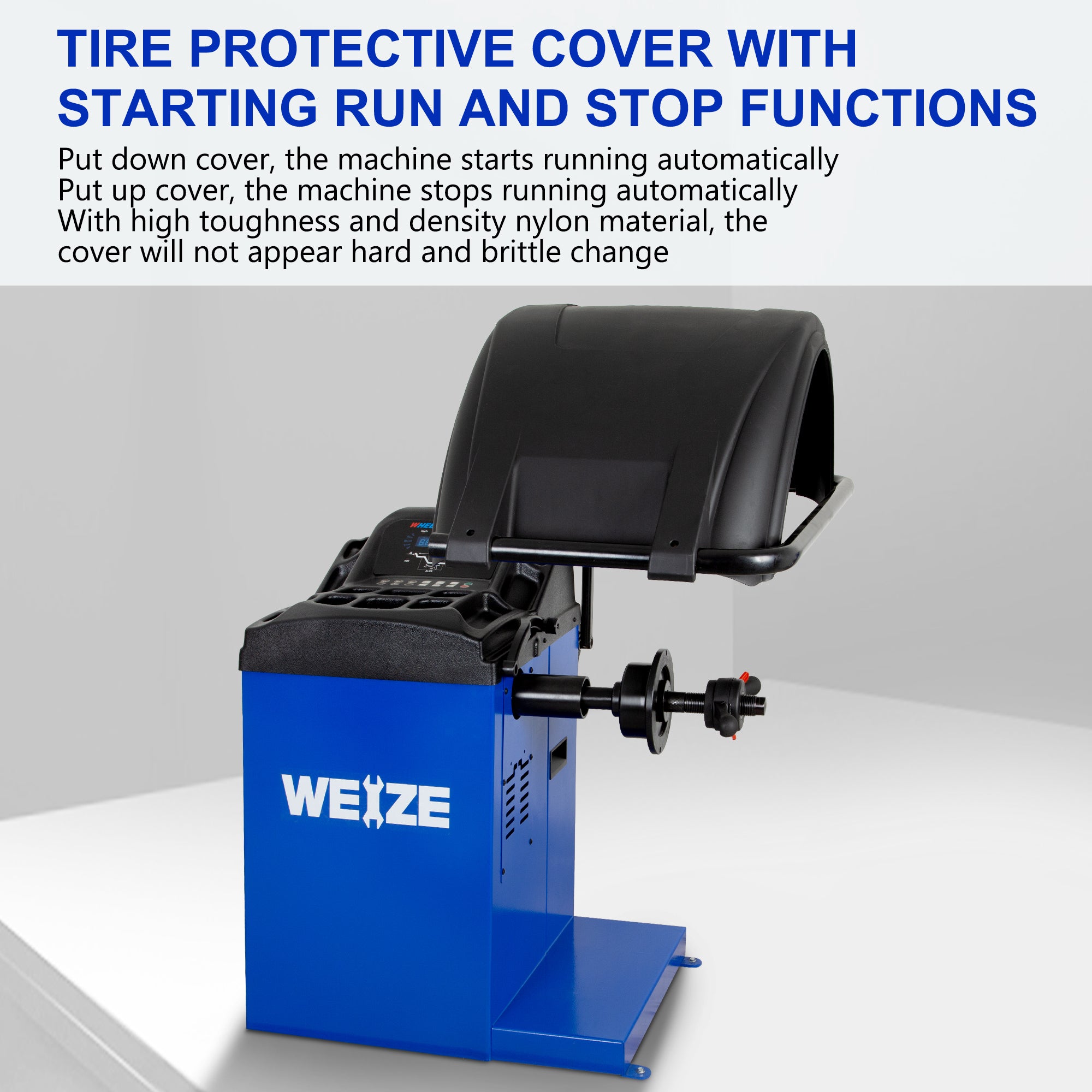

Protective Cover with Start-Stop Functions: The machine features a protective cover that automatically starts the machine when lowered and stops it when raised. The cover is made of high-toughness and high-density nylon material, ensuring it remains durable and resistant to becoming hard and brittle.

Technical Data:

• Max wheel weight: 70kg (154lbs)
• Max. tyre diameter: 1000mm (39”)
• Rim diameter: 10''24'' (254mm610mm)
• Tire width: 1.5''16'' (38mm406mm)
• Power supply: 110v 60hz 1ph 0.25kw
• Balancing accuracy: ±1g
• Balancing modes: DYN, ALU1, ALU2, ALU3, ALU4, ALU5, ALUS, ST
• Balancing speed: 200r/min
• Cycle time: 8s
• Sound pressure level during work cycle: <70db

Features:

• ALU balancing mode allows for weight addition at the 12 o'clock position
• Statistic and dynamic balancing, ALU programs for alloy rims or special shapes

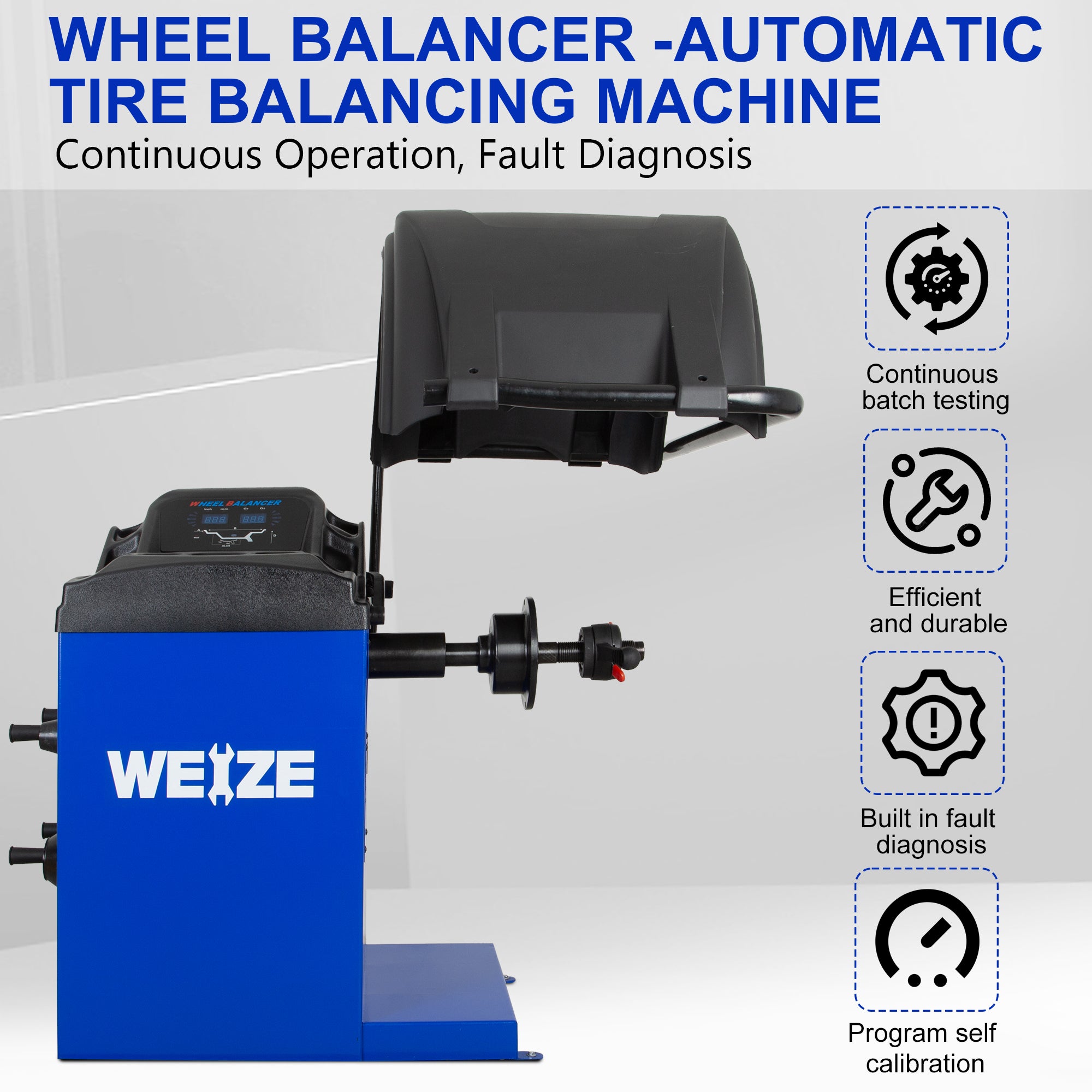

• Self-diagnosis for easy problem identification
• Suitable for steel and aluminum alloy rims

Working Environment:

• Temperature: 550℃
• Height: ≤4000m
