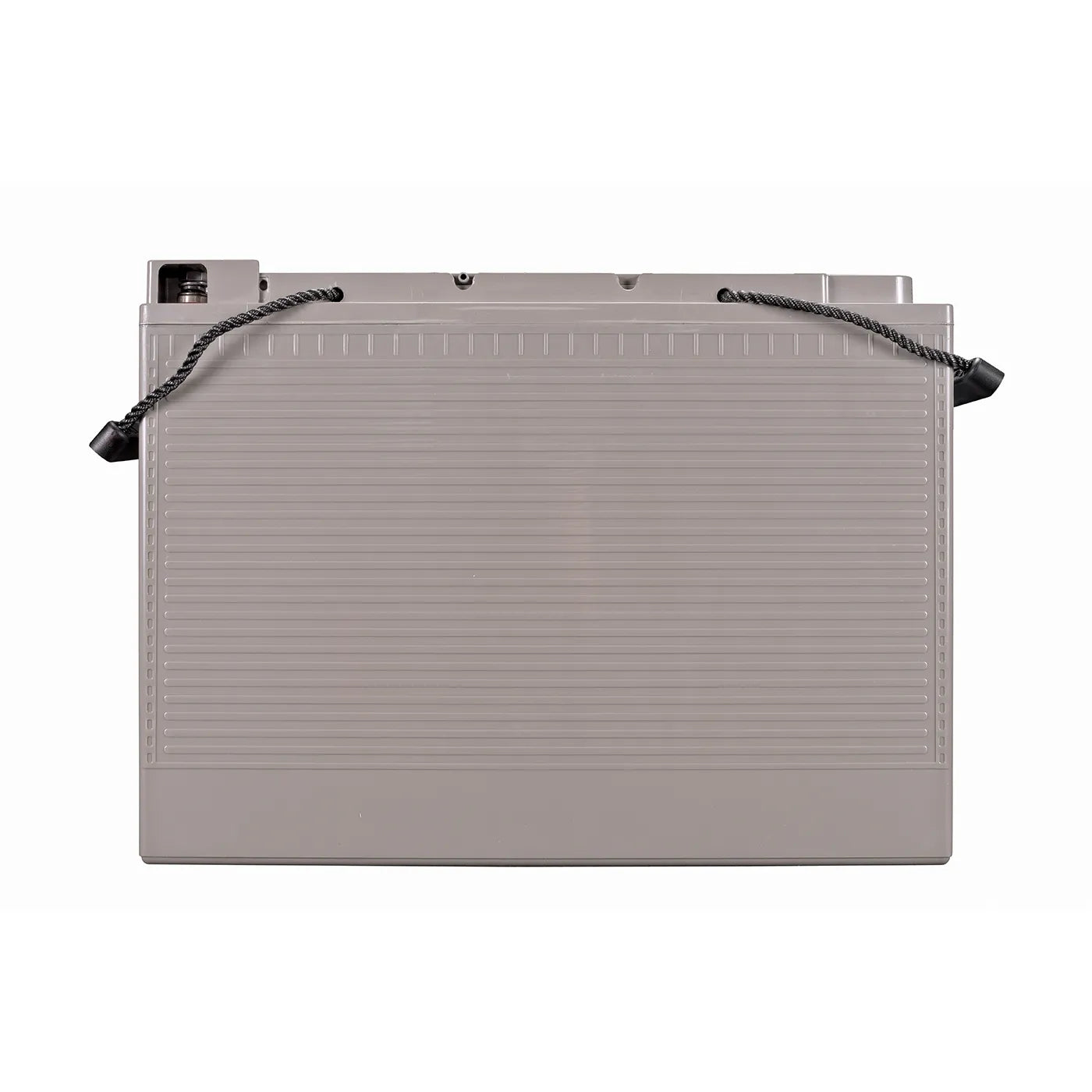

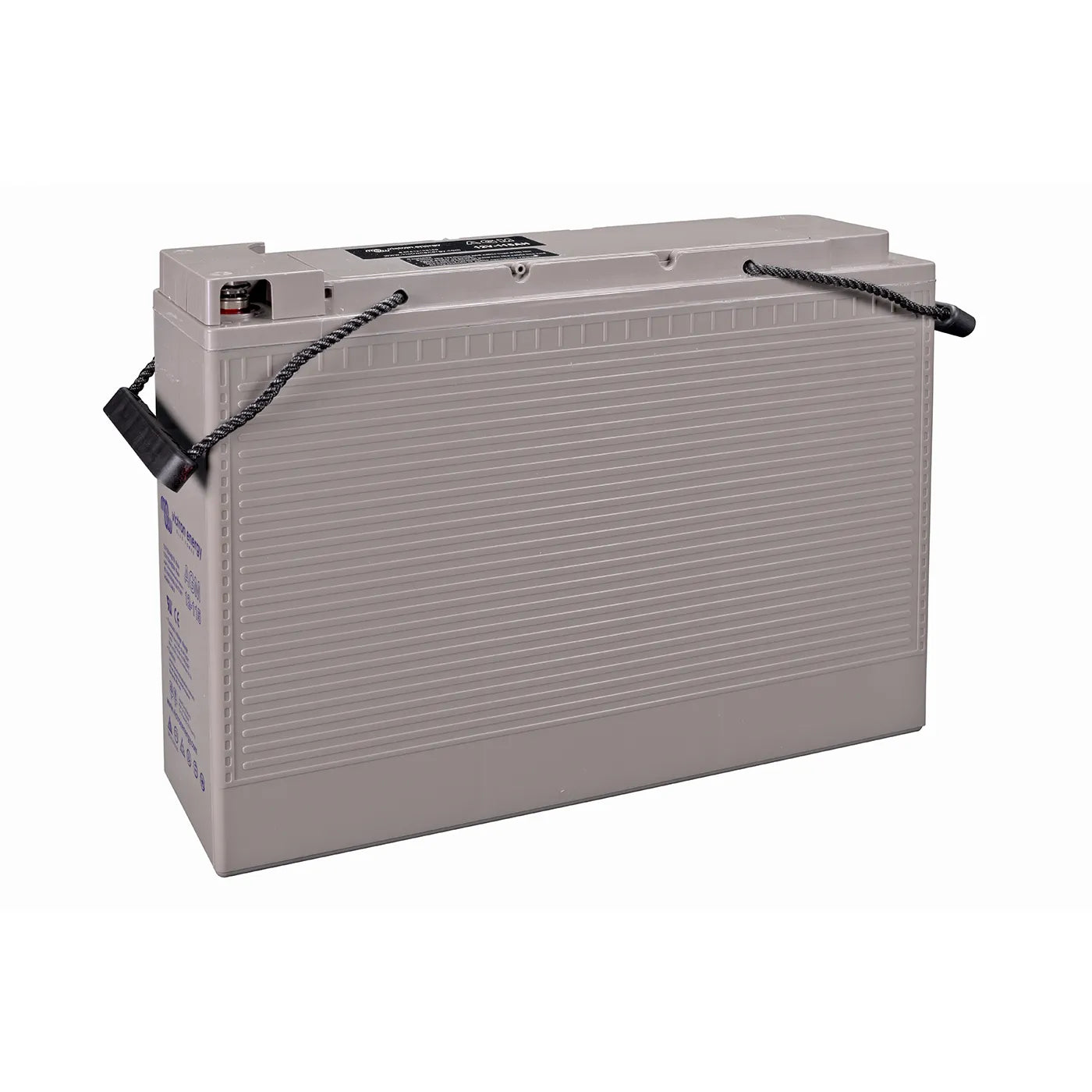

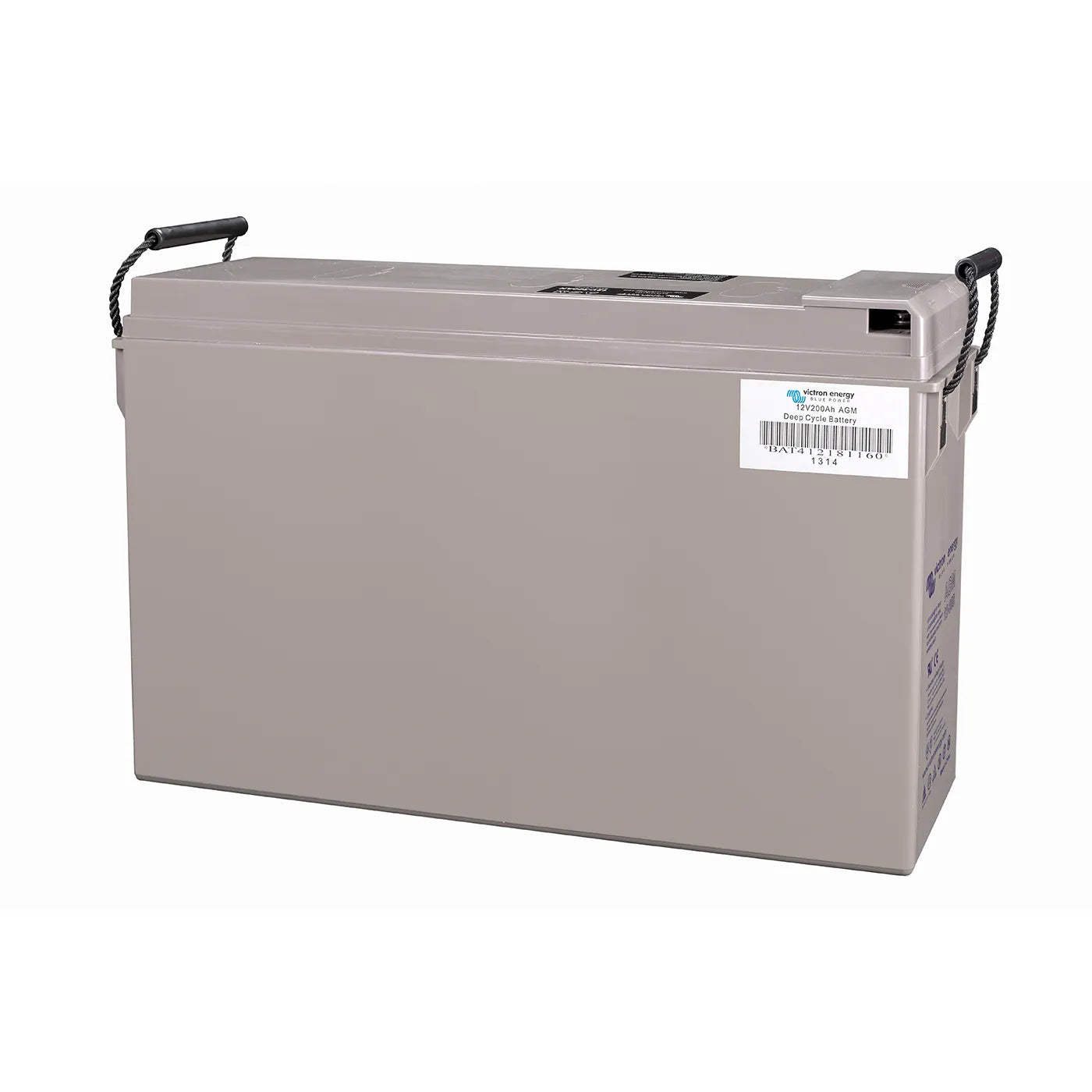

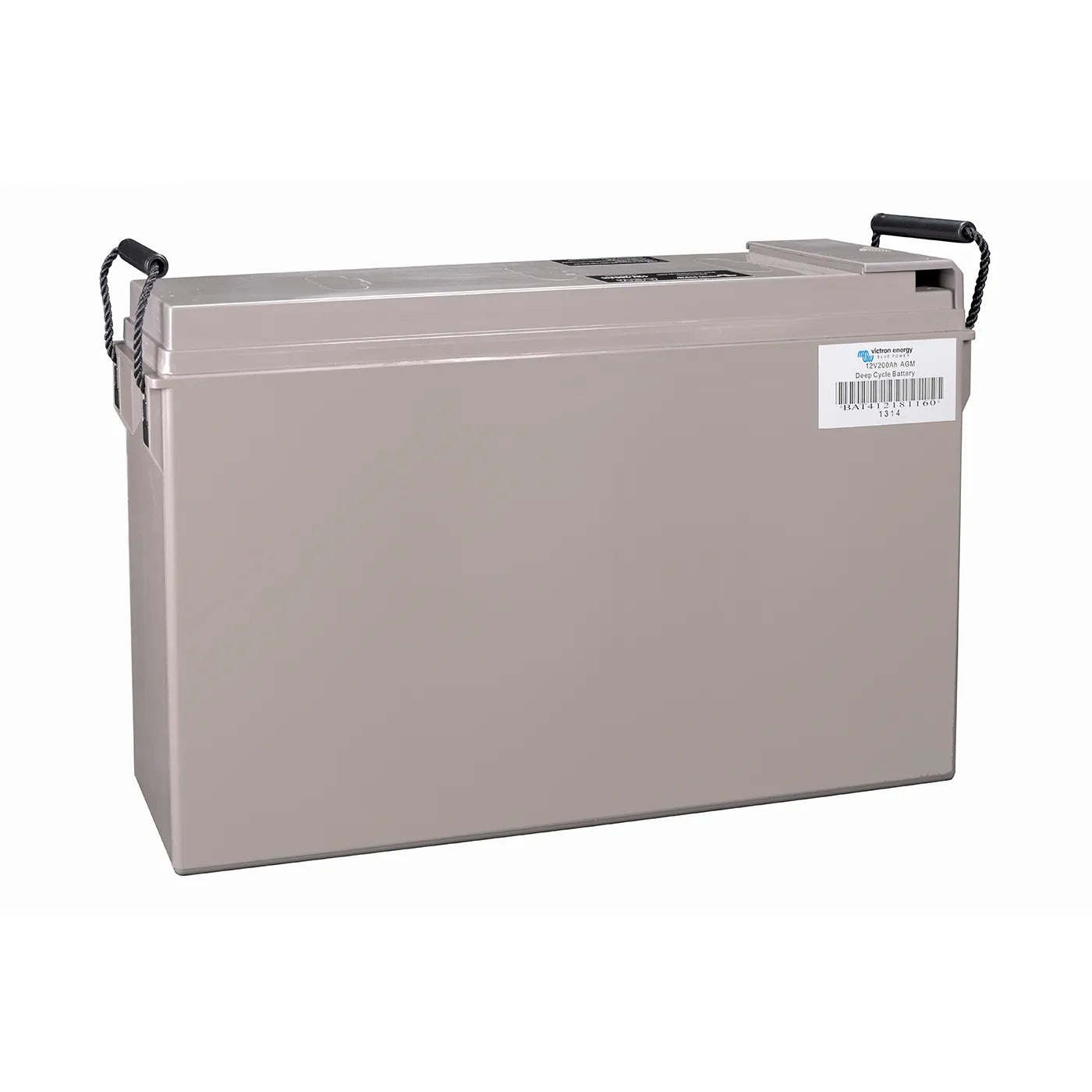

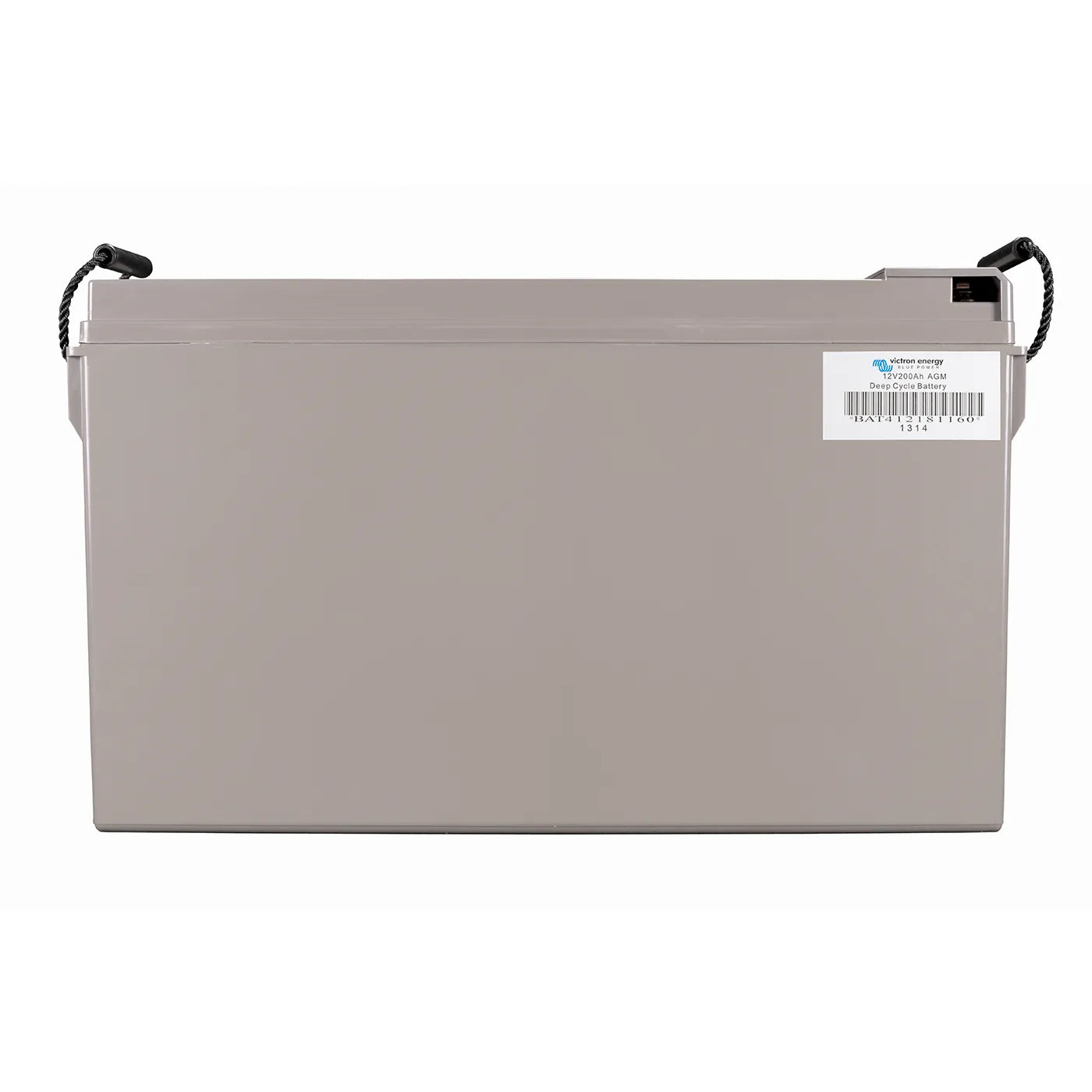

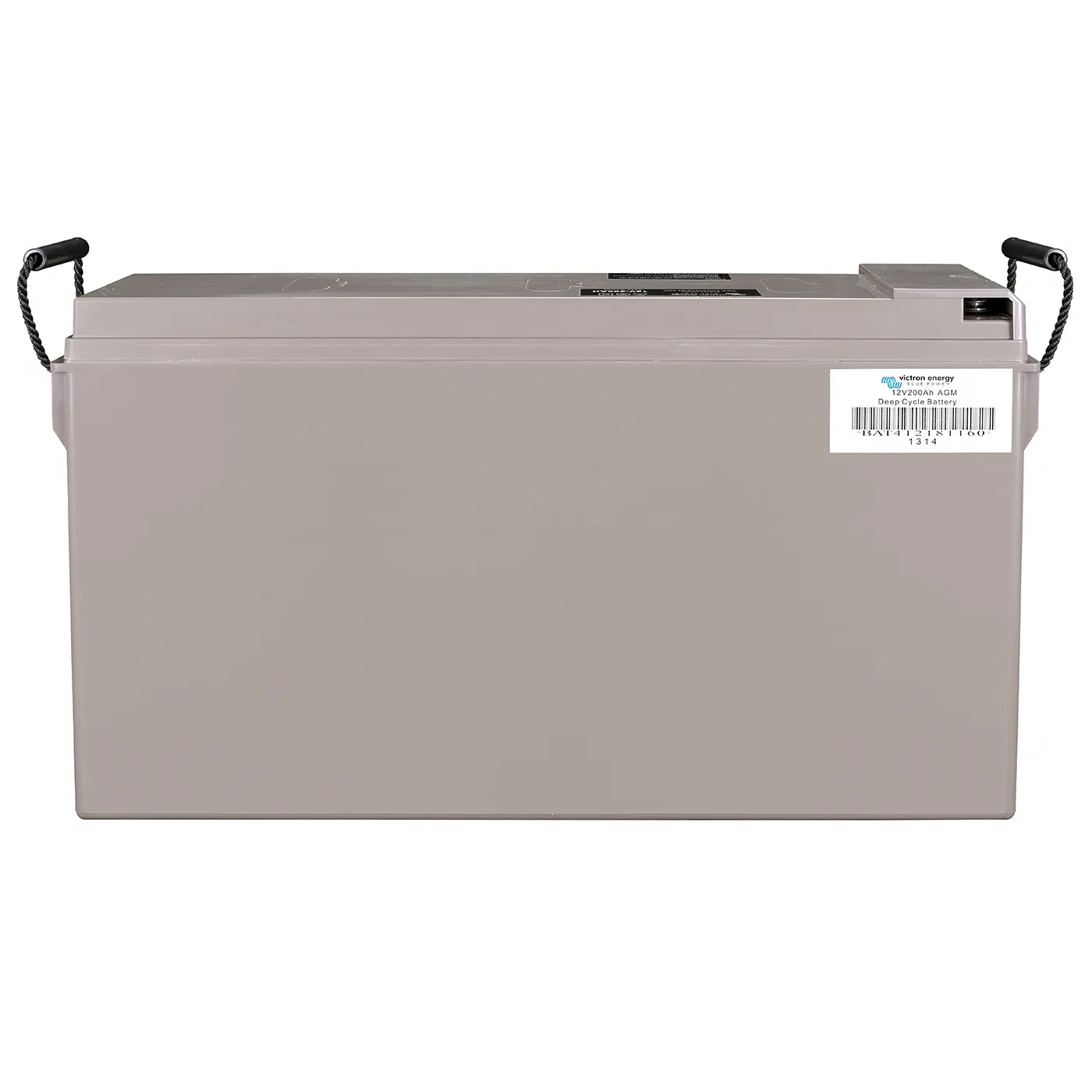

Designed for telecom applications, Victron’s deep-cycle AGM Telecom Batteries save valuable floor space in rack-mounted systems, marine vessels, and vehicle installations. Featuring front-access terminals and a compact footprint, they deliver reliable backup power, low maintenance, and exceptional cycle and float life.
Deep-Cycle AGM Construction with front-access terminals for easy rack mounting and service
Low Self-Discharge: <2 % energy loss per month at 20 °C; doubles every 10 °C, minimizing maintenance during storage
High Cyclic & Float Design Life: up to 1800 cycles at 30 % depth-of-discharge and a 12-year float life at 25 °C
Superior High-Current Performance: cold-cranking amps up to 1800 A, reserve capacity up to 400 min, and low internal resistance for efficient charging/discharging
Compact Footprint: ideal floor-space savers for telecom, marine, and vehicle installations
2-Year Standard Warranty on lead-acid batteries, supported by Victron’s global dealer network
Model | Nominal Capacity | CCA @ -18 °C | Reserve Capacity | Short-Circuit Current | Dimensions (L×W×H) | Weight |
---|---|---|---|---|---|---|

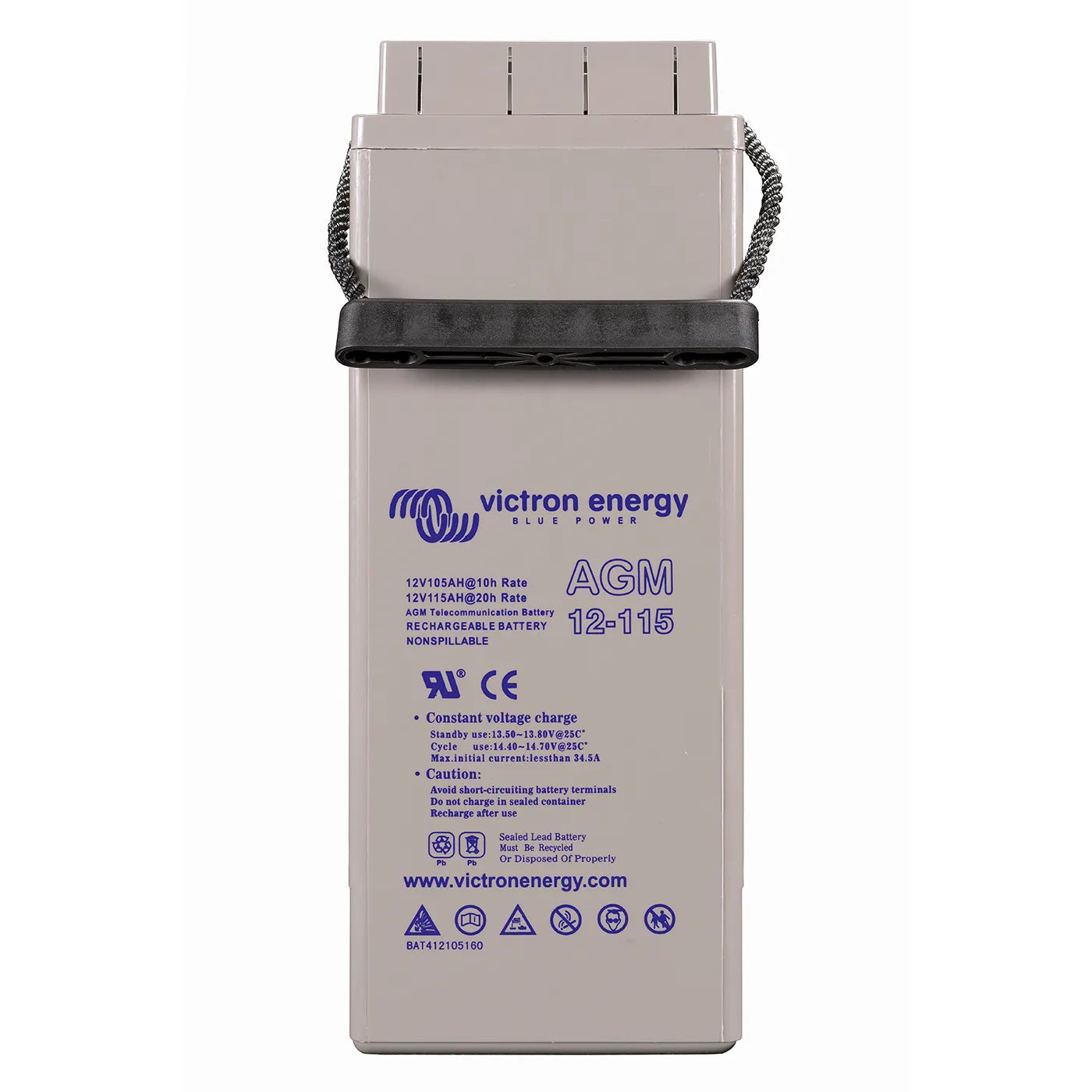

12 V / 115 Ah | 115 Ah | 1000 A | 200 min | 3500 A | 15.37×4.33×11.53 in | 77 lbs |
12 V / 165 Ah | 165 Ah | 1500 A | 320 min | 5000 A | 21.57×4.13×12.44 in | 88 lbs |

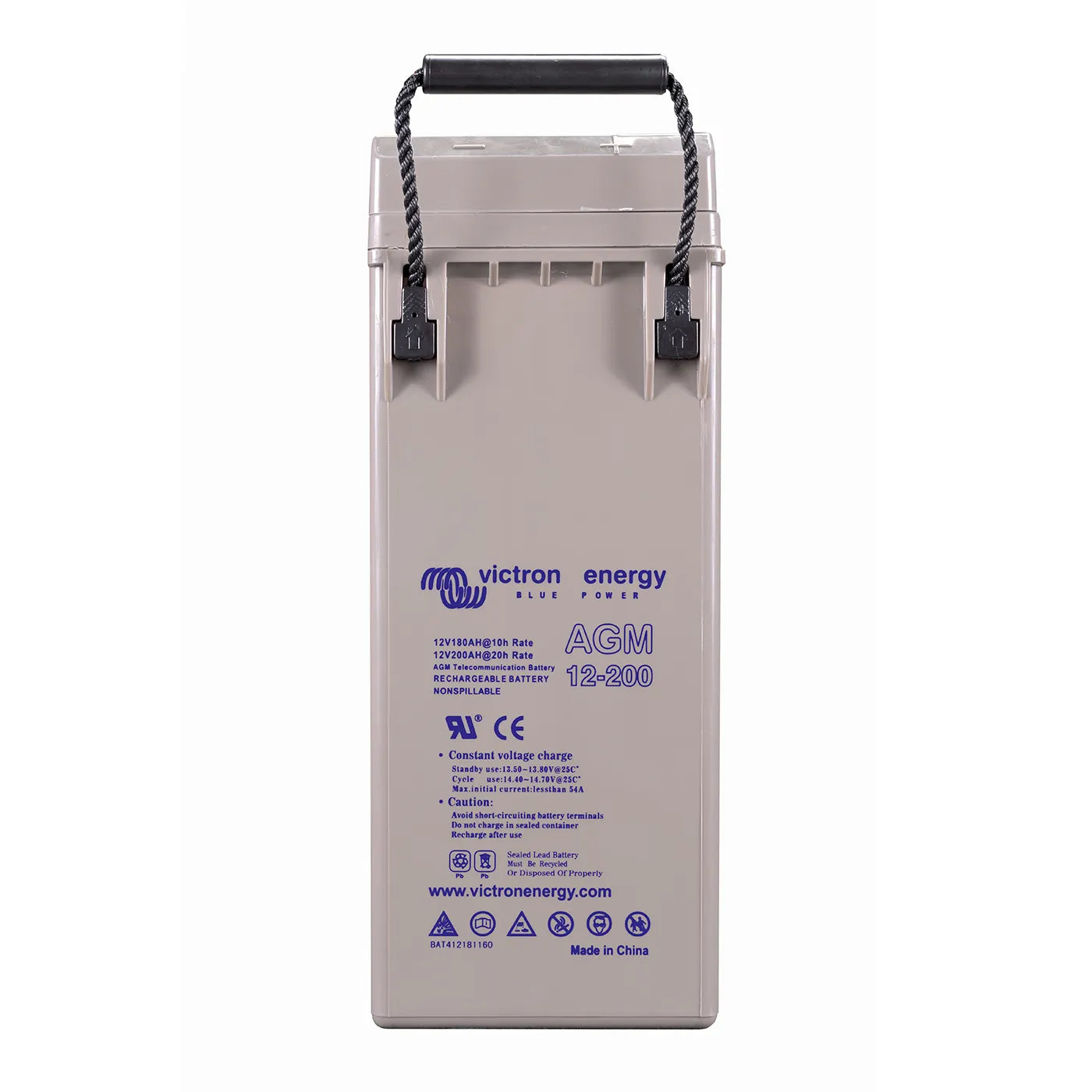

12 V / 200 Ah | 200 Ah | 1800 A | 400 min | 6000 A | 21.49×4.92×12.71 in | 132 lbs |
Capacity at 1/3/5/10/20 h rates: 60 / 75 / 82 / 91 / 100 % of nominal (25 °C, end-of-discharge 10.5 V)
Capacity at 10/20/30/40 min rates: 33 / 44 / 53 / 57 % of nominal (25 °C, end-of-discharge 9.6 V)
Shelf Life: 1 year at 20 °C without recharge
Charge Voltages (25 °C): Absorption 14.4–14.7 V; Float 13.6–13.8 V; Storage 13.2 V
Cycle Life: 500 cycles @ 80 % DOD; 750 cycles @ 50 % DOD; 1800 cycles @ 30 % DOD
Float Design Life: 12 years @ 25 °C
Equip your telecom, marine, or mobile backup system with Victron’s AGM Telecom Batteries for uncompromising reliability, long service life, and space-saving design—available now at Bluemarine.com.
