High-Voltage MPPT Charging for Advanced 48V Battery Systems

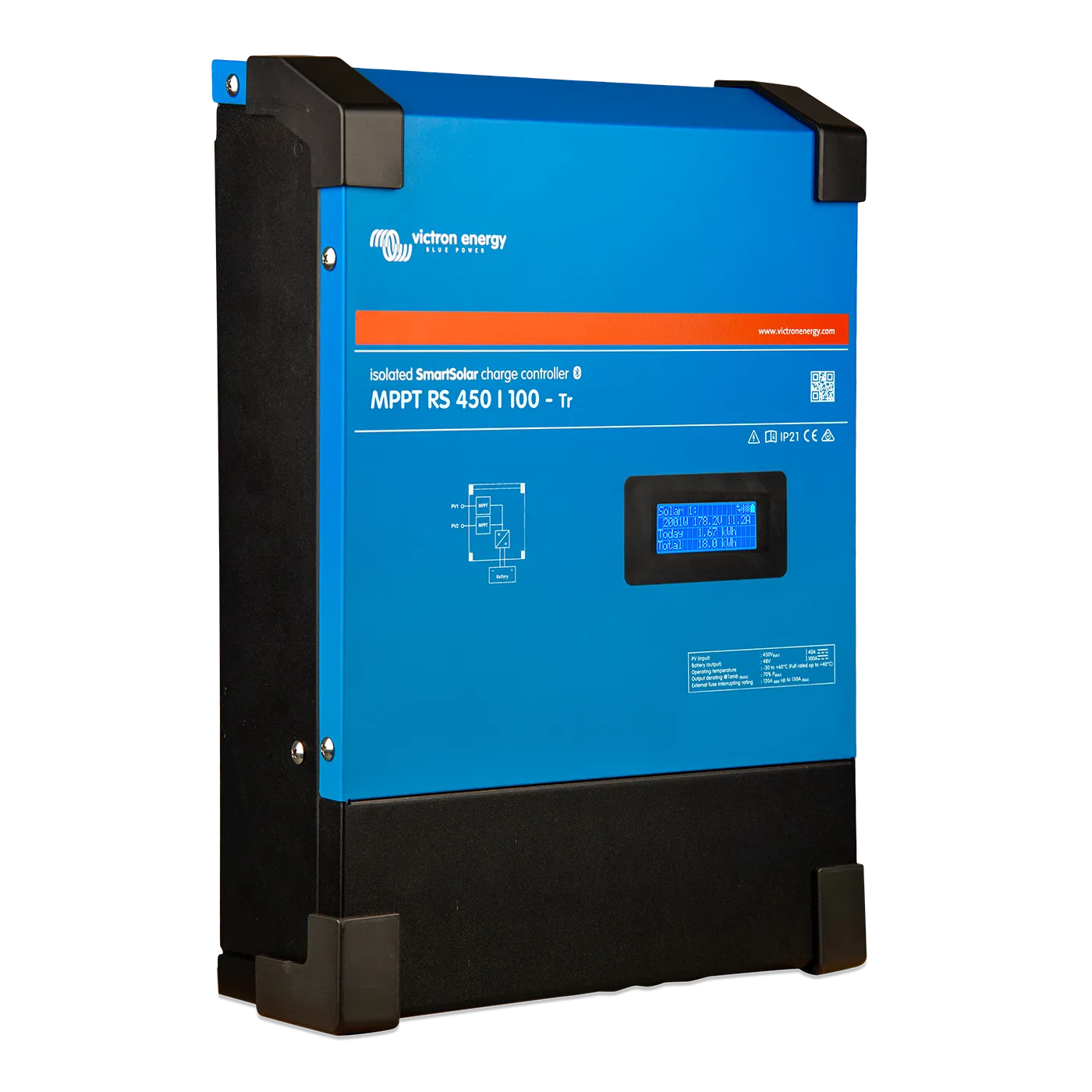

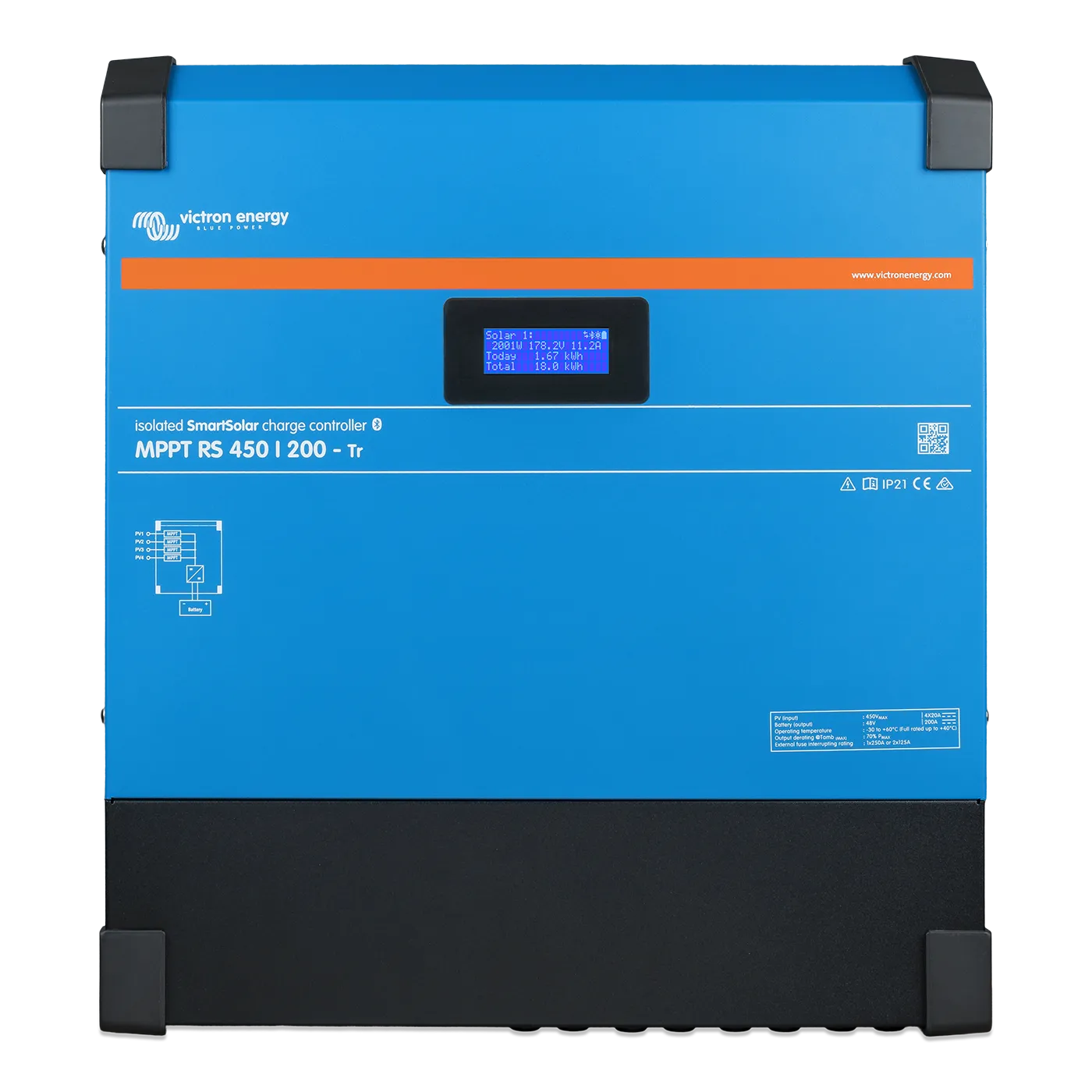

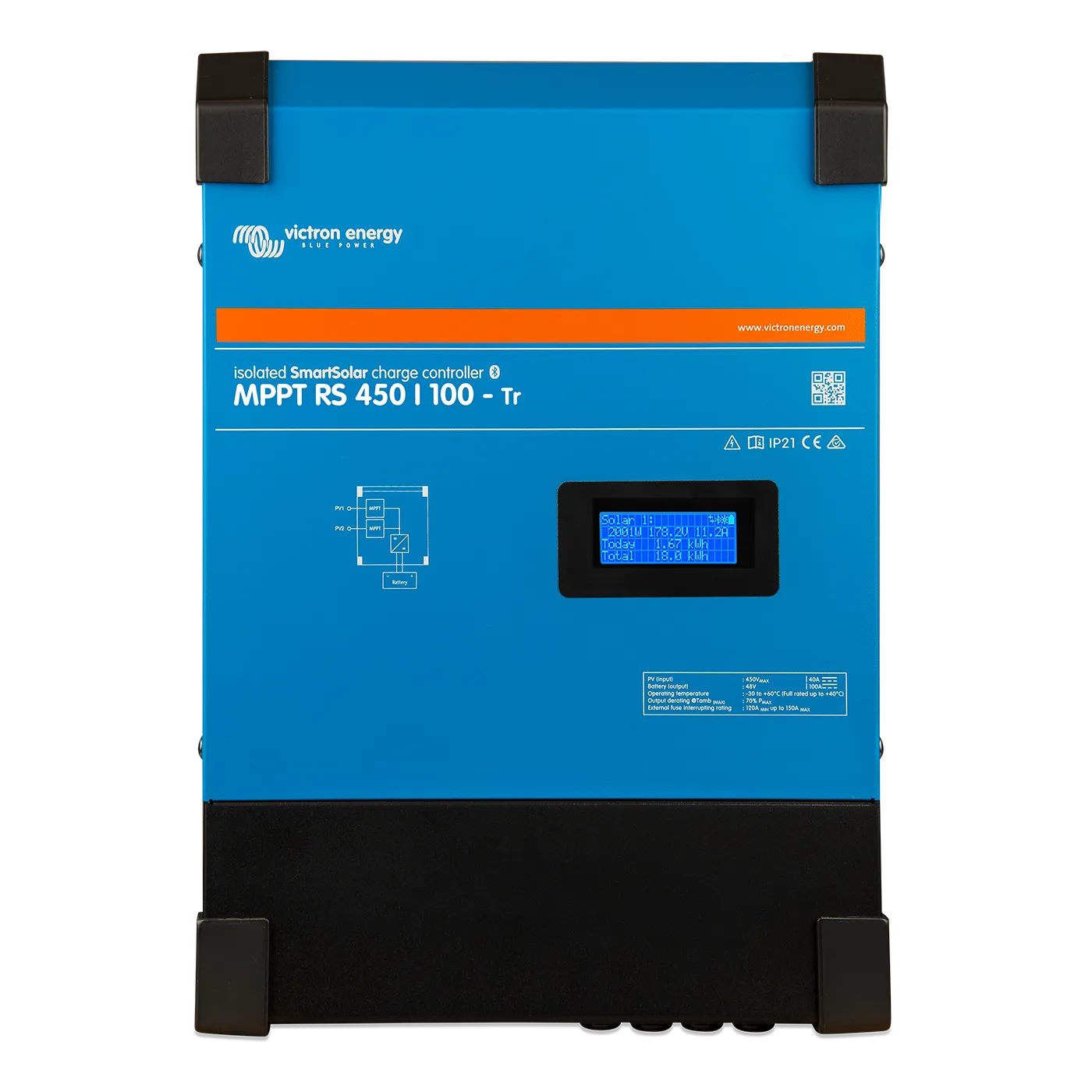

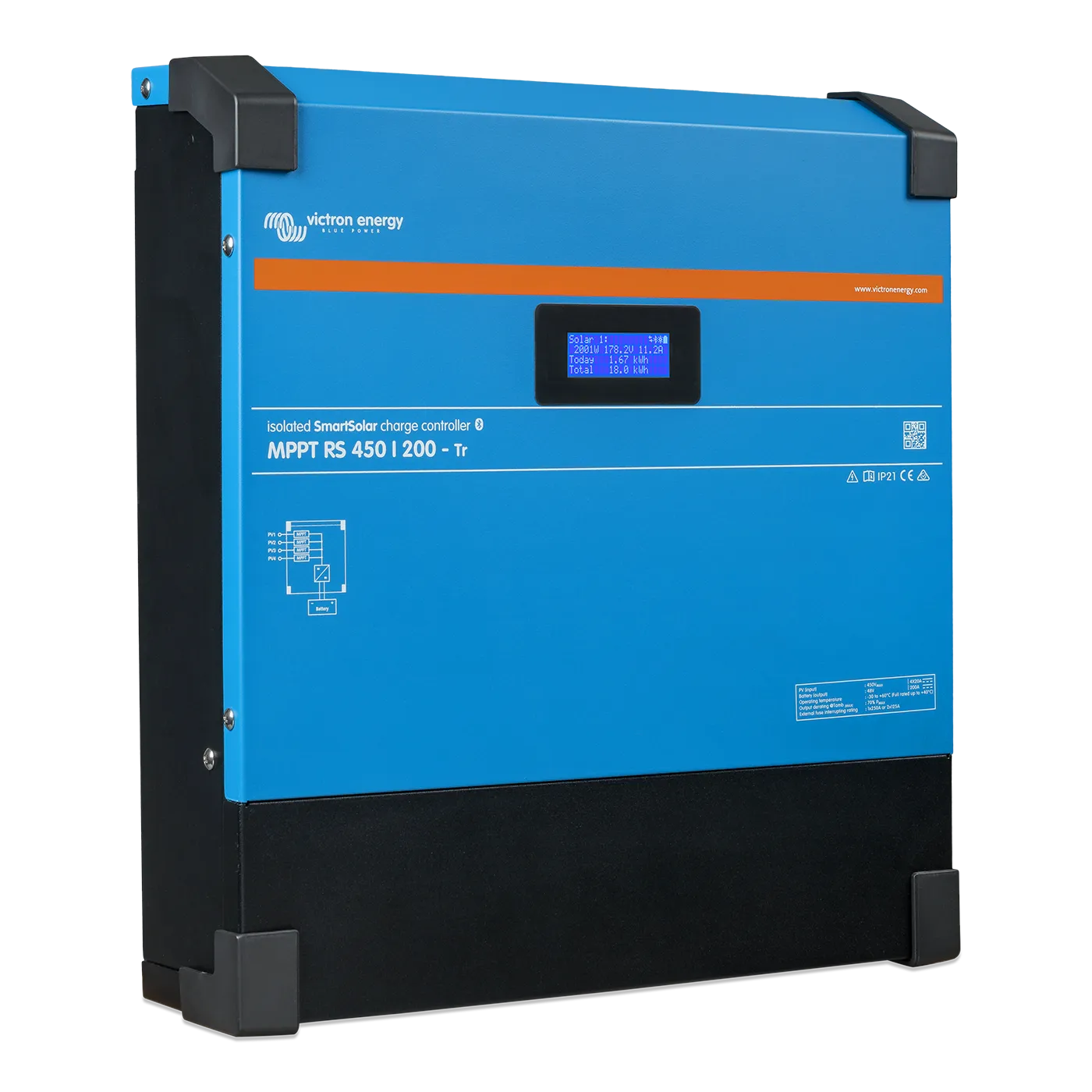

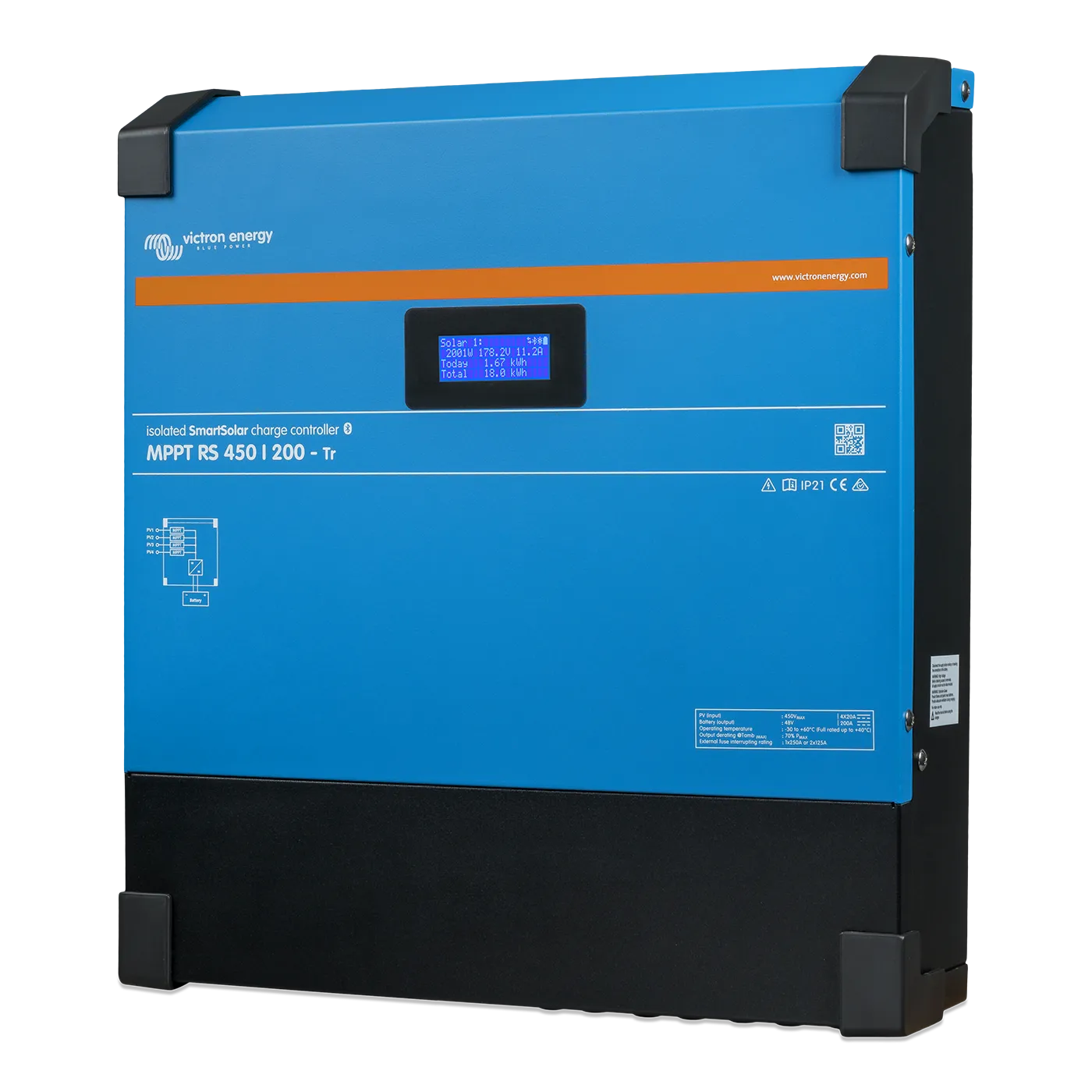

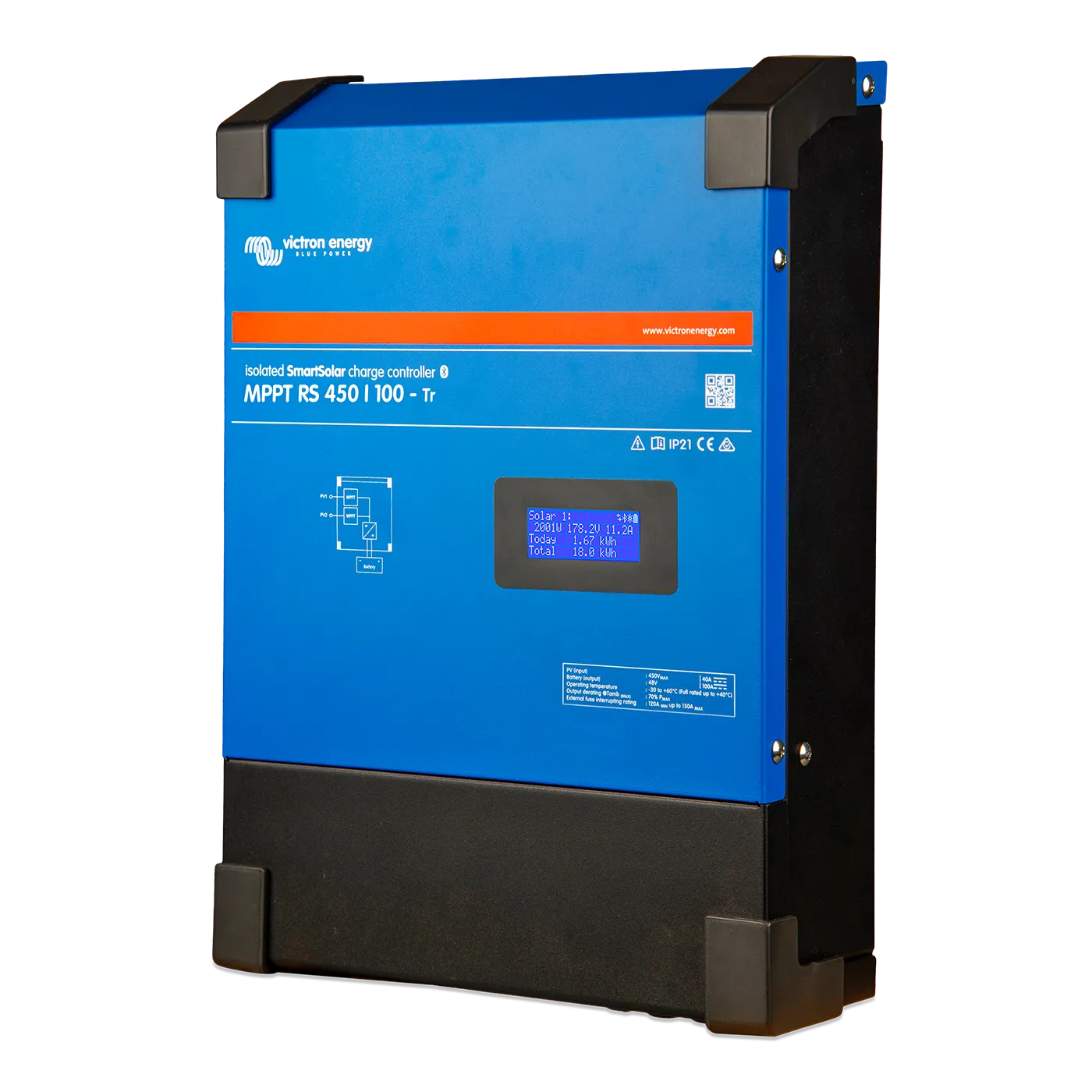

The Victron SmartSolar MPPT RS is a professional-grade solar charge controller designed for large off-grid and grid-connected systems using high-voltage, series-connected PV arrays and 48V battery banks. Available in 5.76kW (100A)and 11.52kW (200A) models, this controller combines advanced MPPT technology, full connectivity, and high current output in a rugged and modernized package.

Ideal for solar systems requiring performance, scalability, and remote management, the SmartSolar RS offers wide MPPT voltage input, independent PV tracking inputs, active cooling, and complete battery charging customization. A new metal case and fully shrouded terminals enhance both safety and aesthetics in line with Victron’s latest hardware suite.

Key Features:

• Ultra-Fast MPPT Technology
  Maximizes solar energy harvest—even under shading or changing light conditions.

• Wide PV Input Range
  Operates between 65–450V DC, perfect for large series-connected PV arrays.

• Dual Independent MPPT Inputs
  Allows two separate PV arrays to be connected and tracked independently for greater design flexibility.

• Fully Programmable Charging
  Configure settings for lead-acid, lithium, and other chemistries using VictronConnect.

• Integrated Display
  Real-time readout of battery voltage, charge current, PV input stats, system status, and error codes.

• Bluetooth Smart Built-In
  Wireless configuration and monitoring via the VictronConnect app.

• VE.Can Bus Communication
  Daisy-chain multiple RS units and synchronize charge stages across controllers.

• Remote Monitoring via VRM
  When connected to a GX device and the internet, full remote access via the Victron Remote Management (VRM) portal.

• I/O and Sensor Support
  Includes a programmable relay, inputs for temperature and voltage sensing, and compatibility with Victron BMS allow-to-charge signals.

Model Options & Dimensions:

Technical Specifications (All Models):

• Battery Voltage: 48V nominal

• Max PV Input Voltage (Voc): 450V

• PV Operating Range: 65–450V DC

• Efficiency: Up to 98%

• Cooling: Active temperature-controlled fans

• Display: Front panel screen with real-time status and data

• Communication Ports: VE.Can, VE.Direct, Bluetooth

• Relay Output: Programmable

• Remote Inputs: For temperature sensor, voltage sensor, and BMS control

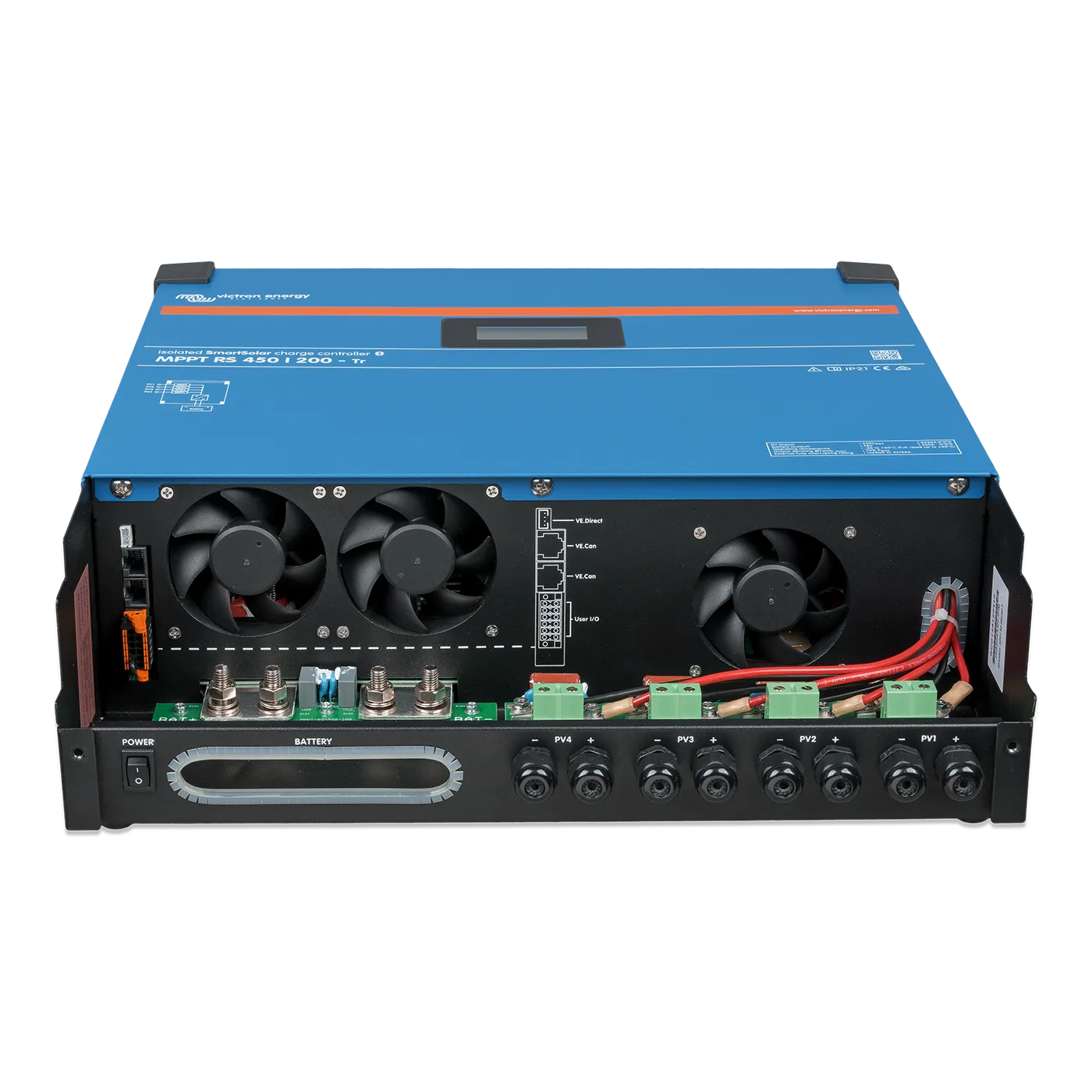

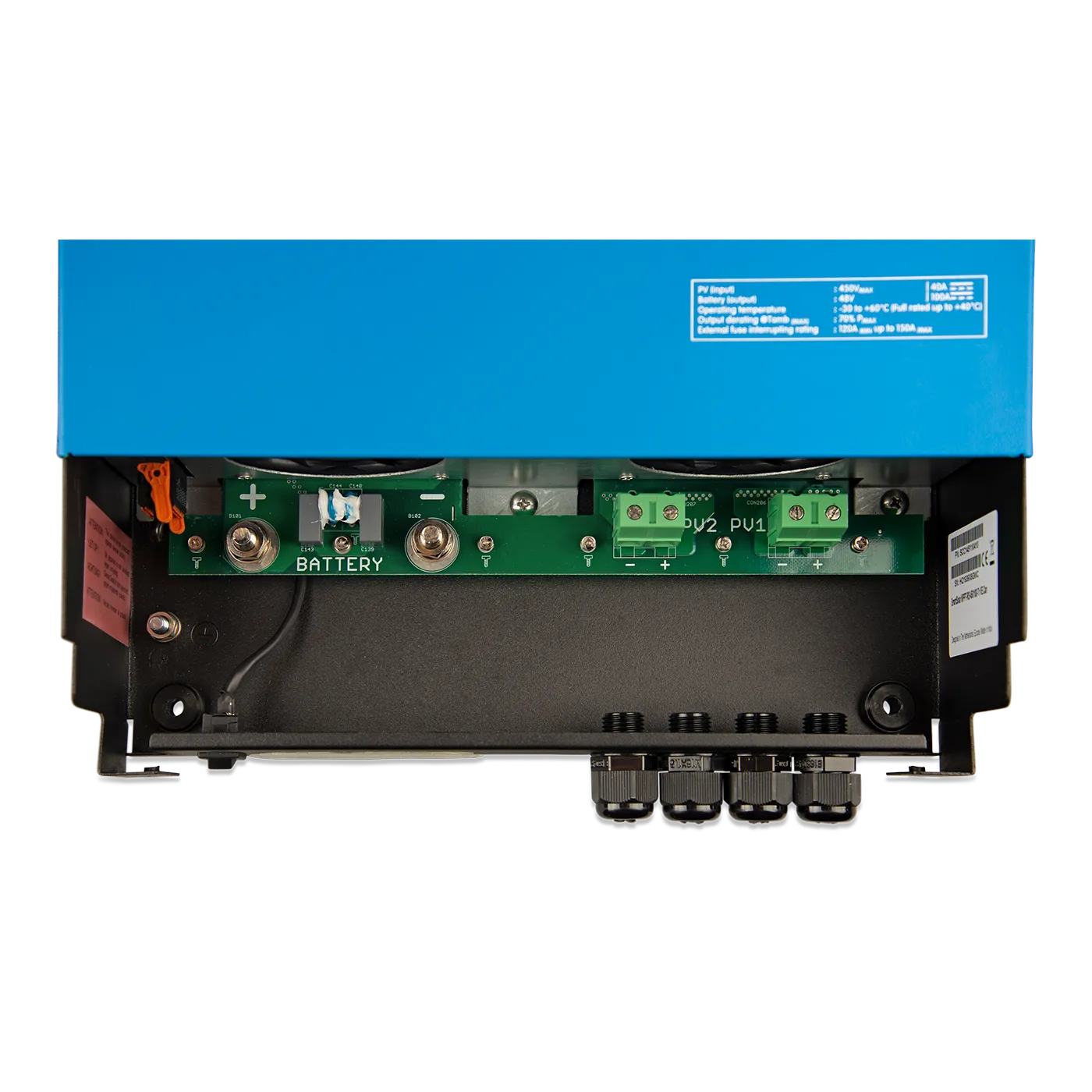

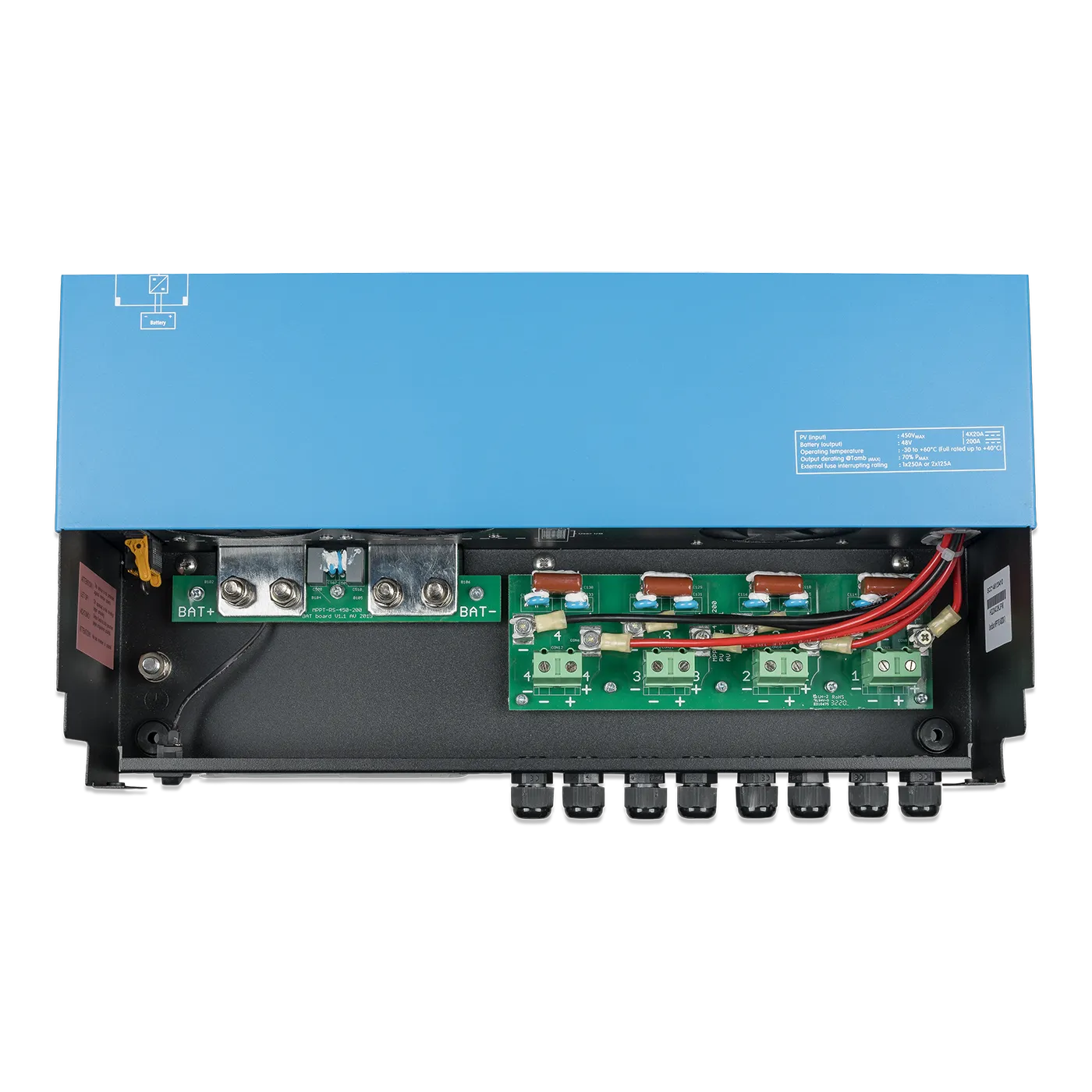

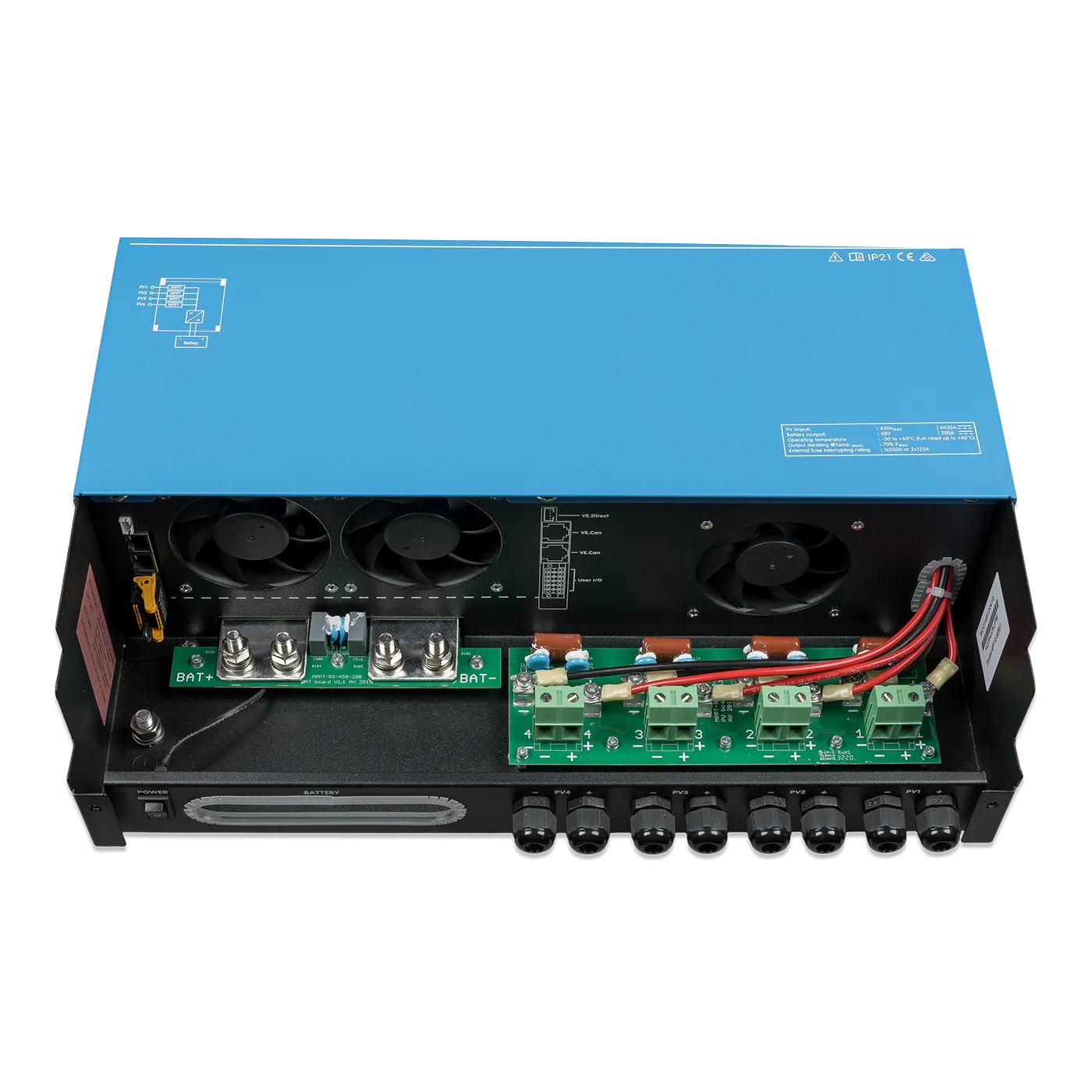

• Enclosure: Durable metal case with fully covered electrical terminals

Applications:
Perfect for marine vessels, expedition vehicles, remote off-grid homes, and commercial solar energy systems requiring high voltage input and robust 48V battery charging.
